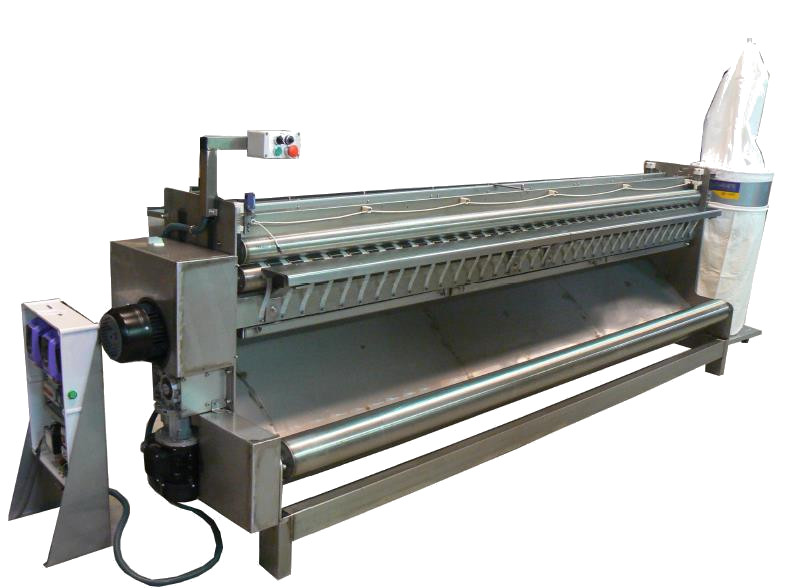

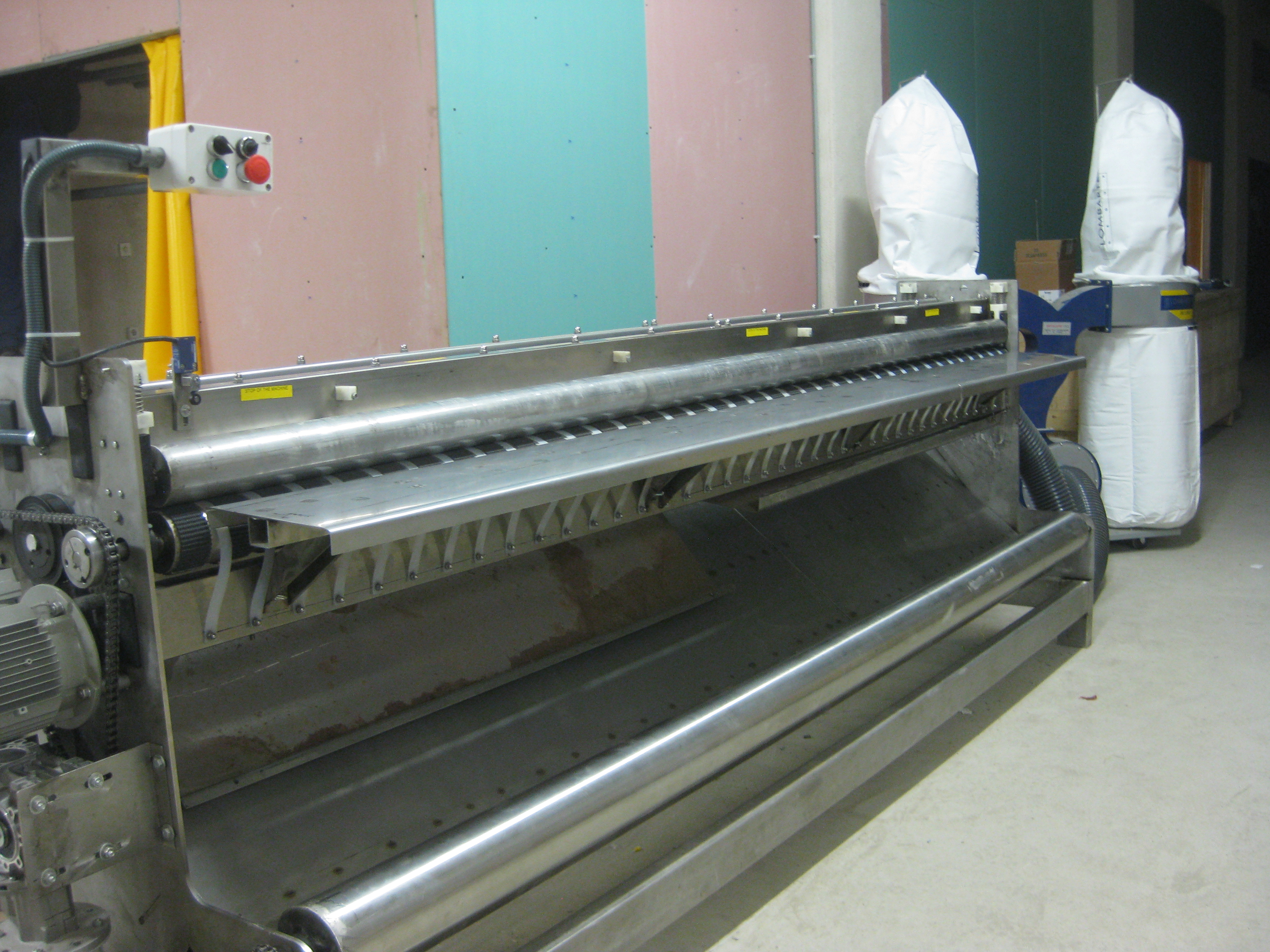

Automatic rug and carpet dust remover PO-300 SIMPLE

Download a brochure

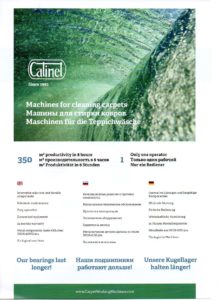

Download a leaflet!



The usage of PO-300 SIMPLE gives you the opportunity of:



  • a significant increase in a quality of service,
  • beating a carpet of 3m width and any length,
  • reduction in time of cleaning process,
  • space savings as machine occupies less than 4m2 of area.



Catinet low-cost automatic dust remover machine PO-300 SIMPLE removes dust, sand and other loose obstacles remaining deeply in a carpet. The removal of dust and other impurities is a key element of the carpet washing process.

Rotary horizontal cylinders cause vibration. Their aim is to extract from the carpet outstanding dust and other impurities, which are removed by a powerful suction system. The impact on the carpet is adapted to the type of a carpet and removes impurities even from very delicate carpets. After the completion of the entire process of beating, the machine automatically rolls up the carpet.

Automatic dust remover machines allow to perform tedious operation on a small surface. This type of a carpet cleaning machine provides high-quality beating level of a carpet with any length.



Features:

  • Free standing,
  • Possibility of setting up next to the wall,
  • Carpet beating of several carpets at the same time,
  • Carpet speed regulation,
  • Forward/backward carpet feed,
  • Regulation of carpet beating frequency (delicate carpets),
  • Automatic carpet rolling (a carpet does ‚not escape’ on the floor),
  • Beated carpet does not have a contact with sand again,
  • High power extractor eliminates dust and sand. This eliminates the need for frequent cleaning of the trough,
  • High quality and durability of materials ensures reliable and long operation.

Required installations:

  • Electrical installation 400V/50Hz/3
Technical characteristicsPO-300 SIMPLE
Maximum working width (m)3,2
Frequency of vibrations (r.p.m.)maks. 900
Regulated carpet speed (m/min.)0,25 – 1,4
The flow of air (suction)30 m3/min.
Capacity of dust container2 x 50 litters
Power supply (kW)2
Voltage (V)400
Vibrator dimensions LxWxH (m)3,5 x 0,95 x 1,2
Filter dimensions LxWxH (m)0,5 x 1 x 2,00
Vibrator's weight (kg)400
Filter's weight (kg)50
Vibrator's materialstainless steel INOX-AINSI-304

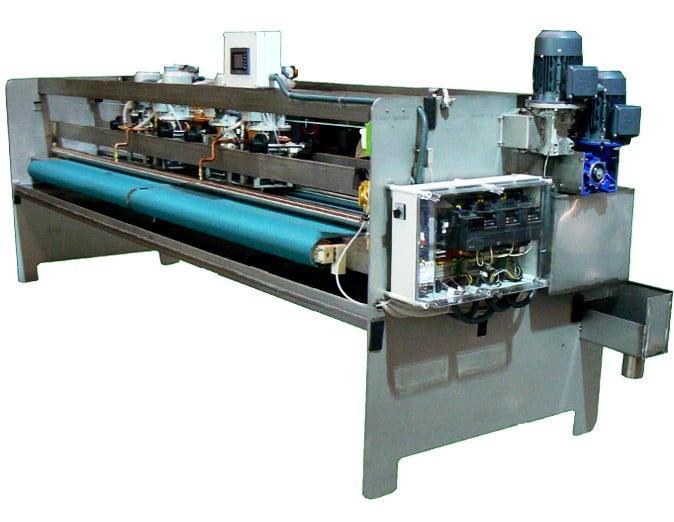

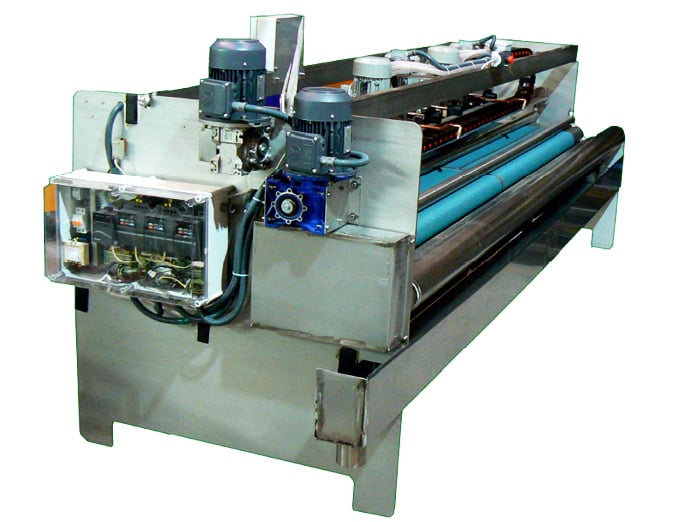

Rug and carpet washing machine RE-3004 SIMPLE

Download a brochure

The usage of RE-3004 SIMPLE gives you the possibility to:

  • wash carpets on the surface less than 5m2,
  • reduce water usage,
  • perform comfortable cleaning process of carpets with long hair and with fringes,
  • save money on spare parts due to the very durable components.



Catinet automatic rug and carpet washing machine RE-3004 SIMPLE an extraordinary level of wash quality compering with ‚traditional’ method. Machine combines several complex and patented cleaning processes: dipping, brushing, rinsing and rolling carpet.

The carpet is transported on a conveyor belt passes four stages of washing.

At the first stage detergent is applied on a carpet. The detergent is taken directly by the pump from the canister. The amount of detergent can be dosed depending on the type and degree of soiling of the carpet.

At the second stage a carpet is treated with brushes. Rotating brushes slide on a trolley that moves brushes from one side to the another. Trolleys are equipped with a compressed air system. It allows you to adjust brush pressure on a carpet (from 0 to 60kg on the trolley.) Therefore a machine allows you to clean even very delicate carpets. Besides that you can change the direction of rotation of the brush. Hence no hair is deformed and twisted in one direction.

At the third step a carpet is rinsed. Two moving jets rinse the residual high pressure in the carpet detergent.

At the fourth stage, a carpet is rolled up and ready to be introduced to the wringing machine.

In practice, this type of device requires ONLY one operator to clean the carpets in the laundry.

Features:

  • free standing equipment
  • Possibility of washing several carpet at the same time
  • Regulation of brush pressure (this function allows to clean delicate carpets, very dirty carpets and carpets with long hair – shaggy type carpets)
  • Regulation of brush rotation speed (it allows to clean delicate carpets)
  • Adjusting the amount of detergent depending on carpet’s type and degree of carpet’s soil level
  • Adjusting the feed rate of the carpet – to clean heavily soiled carpets
  • Adjusting the feed direction of the carpet (forwards/backwards)
  • Working width adjustment tool- allows to adjust function to the carpet’s width.
  • The carpet feed hold function – allows to clean the fringes and very dirty spots.
  • The water recirculation. 60% of water after filtration is consumed in the process of re-brushing of the carpet.
  • High quality and durability of the materials used ensures reliable operation
  • Lifetime brushes – to 25,000 carpets
  • Set up water recycling filters with the deliver

Required installations:

  • Electricity
  • Water supply
  • Sewage
  • Pressed air



Technical characterisiticsRE-3004 Simple
Number of brushes4
Maximum working width (m)3,2
Productivity (m2/hour)40
Average washing time (min.)6
Water usage (litters/m2)24
Electricity usage (kWh/m2)0,075
Detergent consumption (litters/m2)0,03
Power supply (kW)3
Brush rotation speed (r.p.m.)0-300
Number of shampoo pumps1
Water tank (recirculation)YES
Water filter (recirculation)YES
Touch control panelYES
Water connection1/2"
Carpet speed (m/min.)0,2 - 1
Voltage (V)230 or 400
Dimensions LxWxH (m)3,98 x 1,15 x 1,57
Weight (kg)650
Materialstainless steel INOX-AINSI-304

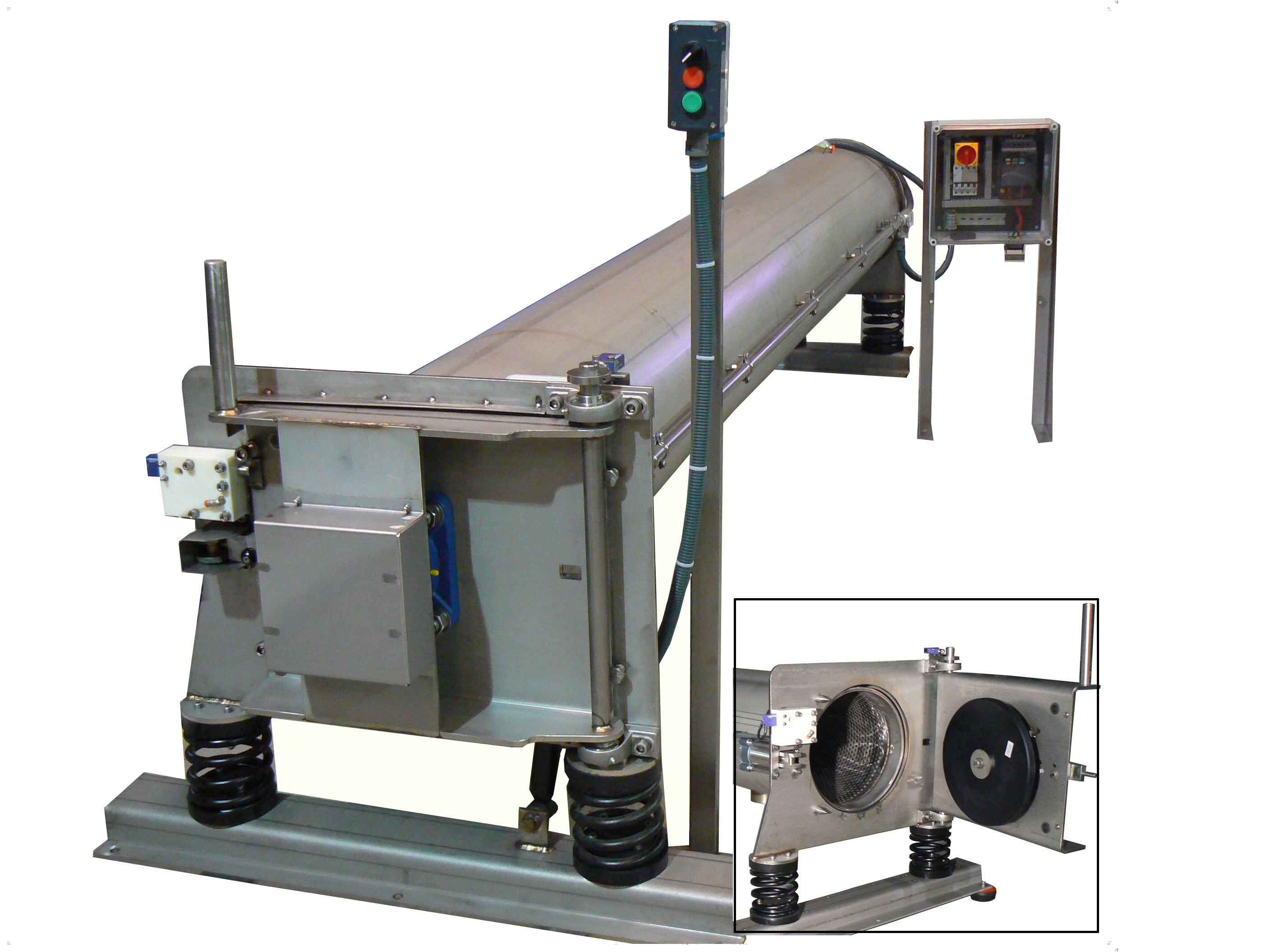

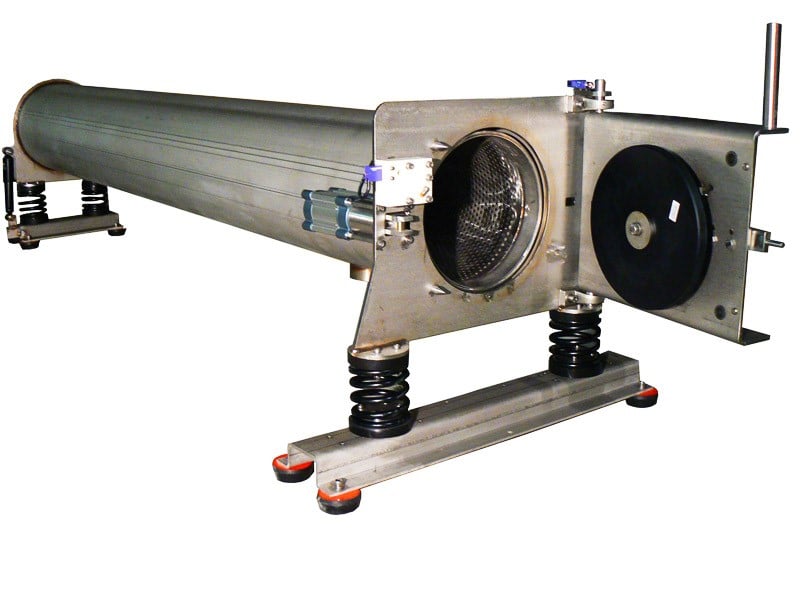

Automatic rug and carpet centrifuge wringing machine CE-300 SIMPLE

Download a brochure

There are the major characteristics of CE-300 SIMPLE:

  • quick and comfortable door opening/closing,
  • durable suspension system,
  • seamless stainless tube and drum,
  • very durable bearings (do not require daily greasing).



Automatic rug and carpet centrifuge wringing machine CE-300 SIMPLE allows to remove quickly the water remaining in the carpet after the washing process.

Removal of the water significantly reduces the time of a drying the carpet. Spinning a carpet will eliminate problems with discolour of fringes, which occurs during dripping the water. In addition, usage of spin drainers reduces the risk of deformation of the carpet upon drying, as the centrifuged carpet is lighter and does not deform.

Carpet spin cycle looks as follows. After placing the carpet in a machine, the drum’s door is closed in a very comfortable way by a single press of a button. After that, the drum starts to rotate slowly. This allows the carpet to develop and adapt to the shape of the drum. Additionally, this prevents damage to the carpet.

In the next step the speed of a drum increases. After a short time it reaches the maximum. Then, the drum slows down to stop for a while. In a final phase carpet is rolled. Single sound informs an operator that cycle is finished.

Centrifuges are essential rug wringing machines as a start in the carpet laundry business.

Features:

  • Free standing
  • Drum’s material – seamless stainless tube,
  • Structure’s material – seamless stainless tube,
  • Structure mounted on the high quality springs eliminating efficiently vibration. It is not necessary to pump tires,
  • Switching off – automatically, after 3 minutes (programmable length of the spin,)
  • Extending the run time – special function for carpets with long hair (shaggy carpet type.) When you press the START button, the spin cycle is extended by an extra minute.
  • Opening centrifuge’s door by using the knob (without cranking and wrestling,)
  • Emergency stop and limit switch,
  • Automatic carpet rolling at the end of the spin cycle,
  • The optimum height of the drum from the ground allows for comfortable carpet loading,
  • High quality and durability of the materials ensures reliable and long-lasting operation,
  • Liveliness of bearings – 2 years, assuming a monthly production of 1500m2,
  • Included with the device – a tool to pull the carpet from the centrifuge.

Required installations:

  • Electricity,
  • Sewage,
  • Pressed air.
Technical characteristicsCE-300 SIMPLE
Wringing speed (r.p.m.)1300
Drum's diameter (cm)30
g factor300
Maximum carpet width (m)3,2
Productivity (carpets/hour)15
Wringing time (min./carpet)3+1
Power supply (kW)3
Voltage (V)400
Dimensions LxWxH (m)3.75 x 1 x 0.90
Weight (kg)350
Materialstainless steel INOX-AINSI-304
